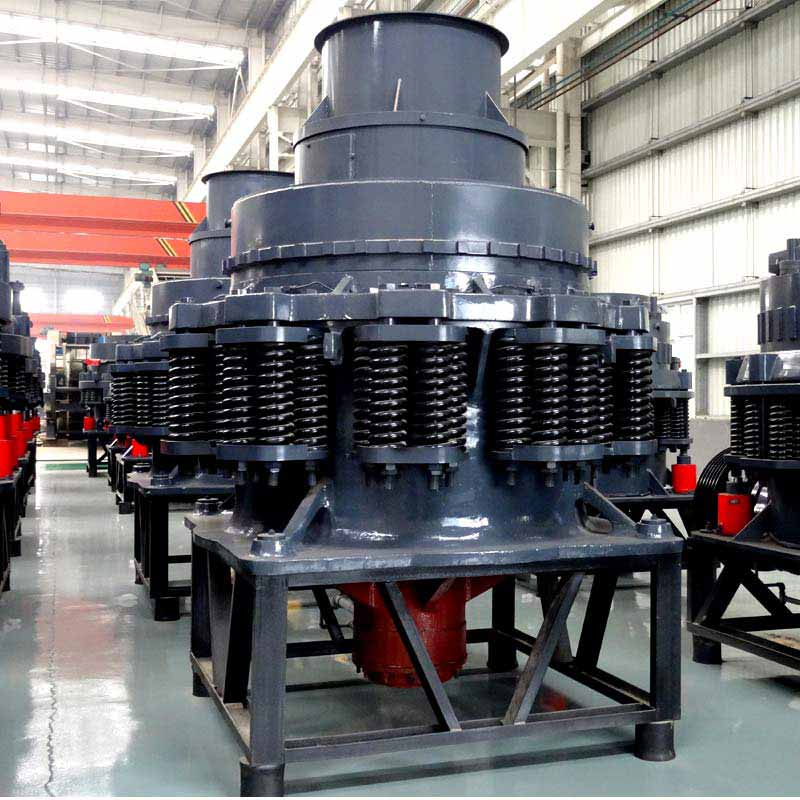

Product Description

As the second crushing process, CS Symons Cone Crusher can process river stone, granite, basalt and ironstone for medium crushing. This machine takes advantages of safety and easy maintenance, and its overload protection device can make the production stable and steady.

Characteristic

1. High-performance
Combining optimal designing of chamber type with applying reasonable speed and stroke, to make this kind of machine does more work with the same dynamic cone diameter. Therefore, this machine is of high-performance and manufacturing capacity compared with other cone crusher of the same type.
2. Good products size composition
The crusher applies for laminated crushing principle to make cubic shapes of final products stand for larger proportion. Acicular and flake shape products decrease and size fraction much more well-proportioned.
3. Good stability
If there is metal or other non-broken material come to the chamber, metal going through protection device will release it and then reset automatically. The protection device has fixed discharge opening returning point and the original discharge opening can returning back immediately after the metal goes through the crushing chamber.
4. Convenient Cleaning-up
If the crusher stops under loading condition, hydraulic cleaning system can clean up the crushing chamber quickly so that decrease the downtime.
5. High reliability.
Adopting main shaft with big diameter，heavy main frame and separate automatic Control System of thin oil lubrication system, so that it guarantees robustness and reliable operation of the crusher.
6. Easy maintenance and operation
All parts can be disassembled from top and the upper side, so that fixed cone and dynamic cone can be disassembled easily.
Under high shock and vibration environment, bronze Bearing can keep excellent bearing capacity and it is much more economic and easy for maintenance.
7. Low production costs
Due for big capacity, high reliability and easy maintenance, the production costs has been reduced greatly.
8. Widespread use
The specialty of CS Series High-efficiency Spring Cone Crusher is maximizing the performance to apply to all kinds of crushing process: from special coarse crushing to fine crushing; from fixed crushing plant to mobile crushing plant.
CS Series High-efficiency Spring Cone Crusher has different types of crushing chamber for choosing according to crushing process.
9. Separate Lubrication
Point control of the independent oil lubrication system ensures dual protection to the machine bearings lubrication, and automatic machine can make more secure.
parameters

Standard
Model Dia. mm (inch) Cavity Feed Opening Outlet Setting (mm) Shaft Speed (r/min) Power (kw) Capacity (t/h) Weight (t) Dimension (mm)
Closing Side (mm) Open Side (mm)
CSB75 900
 (3')		 Fine 83 102 9-22 580 75 45-91 15 2821×1880×2164
Coarse 159 175 13-38 59-163
CSB160 1295
 (4 1/4')		 Fine 109 137 13-31 485 185 109-181 27 2800×2342×2668
Medium 188 210 16-38 132-253
Coarse 216 241 19-51 172-349
CSB240 1650
 (5 1/2')		 Fine 188 209 16-38 485 240 181-327 55 3911×2870×3771
Medium 213 241 22-51 258-417
Coarse 241 268 25-64 299-635

Short Head
Model Dia. mm (inch) Cavity Feed Opening Outlet Setting (mm) Shaft Speed (r/min) Power (kw) Capacity (t/hour) Weight (t) Dimension (mm)
Closing Side (mm)
Open Side (mm)
CSD75 914 (3') Fine 13 41 3-13 580 75 27-90 15 2821×1880×2410
Coarse 33 60 3-16 27-100
CSD160 1295
(4 1/4')		 Fine 29 64 3-16 485 160 36-163 27 2800×2342×2668
Medium 54 89 6-16 82-163
Coarse 70 105 10-25 109-227
CSD240 1676
(5 1/2')		 Fine 35 70 5-13 485 240 90-209 55 3917×2870×3771
Medium 54 89 6-19 136-281
Coarse 98 133 10-25 190-336

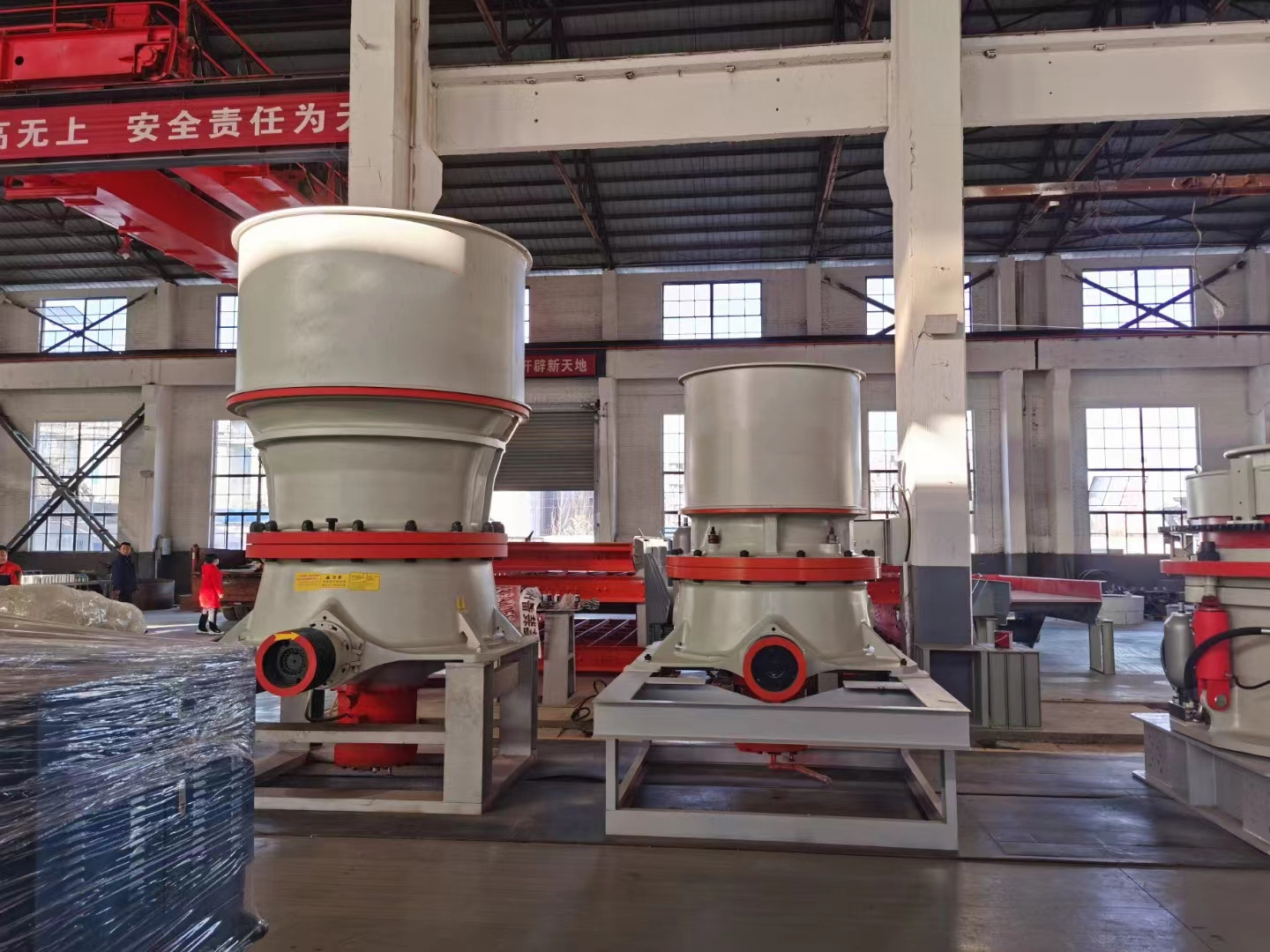

Product Description

GP Hydraulic Cone Crusher integrates machinery, hydraulic pressure, electrics, automation and intelligent control together, which can be used for medium crushing, fine crushing and ultra-fine crushing. With full automatic control system, this machine can realize accurate regulation.

Characteristic

1. High efficiency.
The hydraulic cone crusher has support on both ends of the spindle, which is able to bear greater crushing force and greater stroke, coupled with the special shape of crushing chamber adapted to laminated principle, the machine has higher crushing efficiency.

2. Large production capacity.
The hydraulic cone crusher has the perfect combination of design with crush stroke, crushing speed and crushing chamber shape, which make the machine's moving cone big end diameter in the same circumstances, the output is 35% ~ 60% higher than the old spring cone crusher.

3. High quality stones.
The hydraulic cone crusher adopts special crushing chamber and laminated crushing principle, resulting in inter-particle crushing effect, so that the finished product significantly increased the proportion of the cube, flake stone needles reduced and grain is more uniform.

4. Just replacing the fixed cone can achieve a variety of cavity shapes for fine crushing.

5. Double insurance controlled hydraulic and lubrication system can ensure the machine's overload protection and good bearing lubrication.

6. Easy maintenance.
The structure of cone crusher is simple and compact.It has the features of stable performance, not easy to fault and convenient



parameters

Model Cavity Maximum feed(mm) Min CSS(mm) Capacity(t/h) Power(kw)
GP100 S1(Extra Coarse) 240 22 85-170 90
S2(Medium Coarse) 200 19 70-130
H1(Fine) 135 10 45-115
H2(Medium Fine) 65 8 35-80
H3(Extra Fine) 35 4 27-60
GP160 S1(Extra Coarse) 360 25 120-345 132
S2(Medium Coarse) 300 22 105-305
S3(Coarse) 235 19 90-275
H1(Fine) 185 13 66-210
H2(Medium Fine) 90 10 65-165
H3(Extra Fine) 50 6 48-105
GP250 S1(Extra Coarse) 450 35 255-605 220
S2(Medium Coarse) 400 29 215-515
S3(Coarse) 300 25 190-490
H1(Fine) 215 16 110-395
H2(Medium Fine) 110 13 115-340
H3(Extra Fine) 70 8 90-255
GP315 S1(Extra Coarse) 560 41 335-1050 315
S2(Medium Coarse) 500 38 305-895
H1(Fine) 275 16 170-665
H2(Medium Fine) 135 16 190-505
H3(Extra Fine) 65 13 205-320

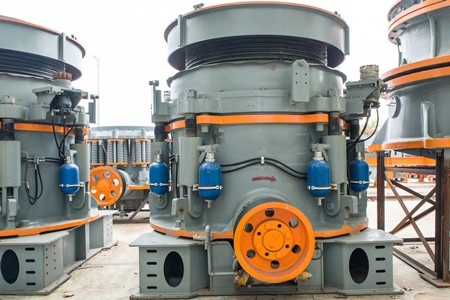

Product Description

HP Series High Performance Hydraulic Cone Crusher combines crushing stroke with crushing chamber perfectly, which makes capacity improved and efficiency increased. Besides, hydraulic lubrication control system helps bearing of hydraulic cone crusher get double protection.

Characteristic

1. High crushing ratio and production efficiency.
Connection of higher turning speed and stroke makes rated power and passing capacity improved greatly and crushing ratio and capacity increased.

2. Less spare part consumption and low operation cost.
advanced crushing principle and technical data, reliable operation and low operation cost. All parts of the crusher have anti-wearing protection, which can make the life time of spare parts increased by 30% and the maintenance cost decreased to the lowest. The crusher avoids the disadvantages of impact crusher like low average crushing ratio, large energy consumption, fast abrasion of blow bar, impact plate and lining board.

3. Between-layer pressuring crushing and better finished product shape.
The crusher adopts between-layer pressuring crushing principle and suitable turning speed, not the traditional single particle crushing principle. The special crushing cavity can make the crusher crush materials selectively, thus the proportion of fine product and product of cubic shape is increased distinctly and product of lump size is decreased by a large extent.

4. Thin oil lubrication makes the life time increased.
Unique design of thin oil lubrication system prolongs life time of the crusher, high performance and not touchable labyrinth airproof part block off dust and remove common disorders like mixture of oil and water in spring cone crusher.

5. Hydraulic protection and hydraulic cavity clearing, high automatization and less stopping production and repairing time.
Discharge opening is adjusted by hydraulic device and overload protection makes performance of the crusher increased by a large extent, maintenance and operation are easier, repairing time is shorter.; the bidirectional metal releasing hydraulic vat makes slab pass through crushing cavity；the crusher can discharges material automatically when the hydraulic device works under the condition of iron passing and instantaneous overloading, thus there is no trouble of stopping the crusher to discharge material by hand.

6. Various crushing cavity.
It only need change fixed cone lining board and movable cone lining board; , the type of crushing cavity can be changed from standard coarse cavity to short head fine cavity, which can meet various kinds of requirements.

7. Easy maintenance and operation.
all parts of HP series of cone crusher can be assembled, disassembled and repaired from the top and side part, including the fixed cone and movable cone. If change, no need to disassemble the crusher body and fasten the bolts. Hydraulic motor makes the performance of crusher better.
parameters

Model Cavity (coarse/fine) Close Side feed opening(mm) Min CSS (mm) Capacity (t/h) Power (kW)
HP300 C1 230 25 220-440 220
C2 210 19 190-380
M 150 16 175-320
F1 105 13 145-280
F2 80 10 110-240
HP400 C1 295 30 300-630 315
C2 251 25 285-560
M 196 20 250-490
F1 110 13 180-345
F2 90 10 135-320
HP500 C1 330 38 425-790 400
C2 290 30 370-700
M 210 22 330-605
F1 135 16 270-535
F2 95 13 220-430

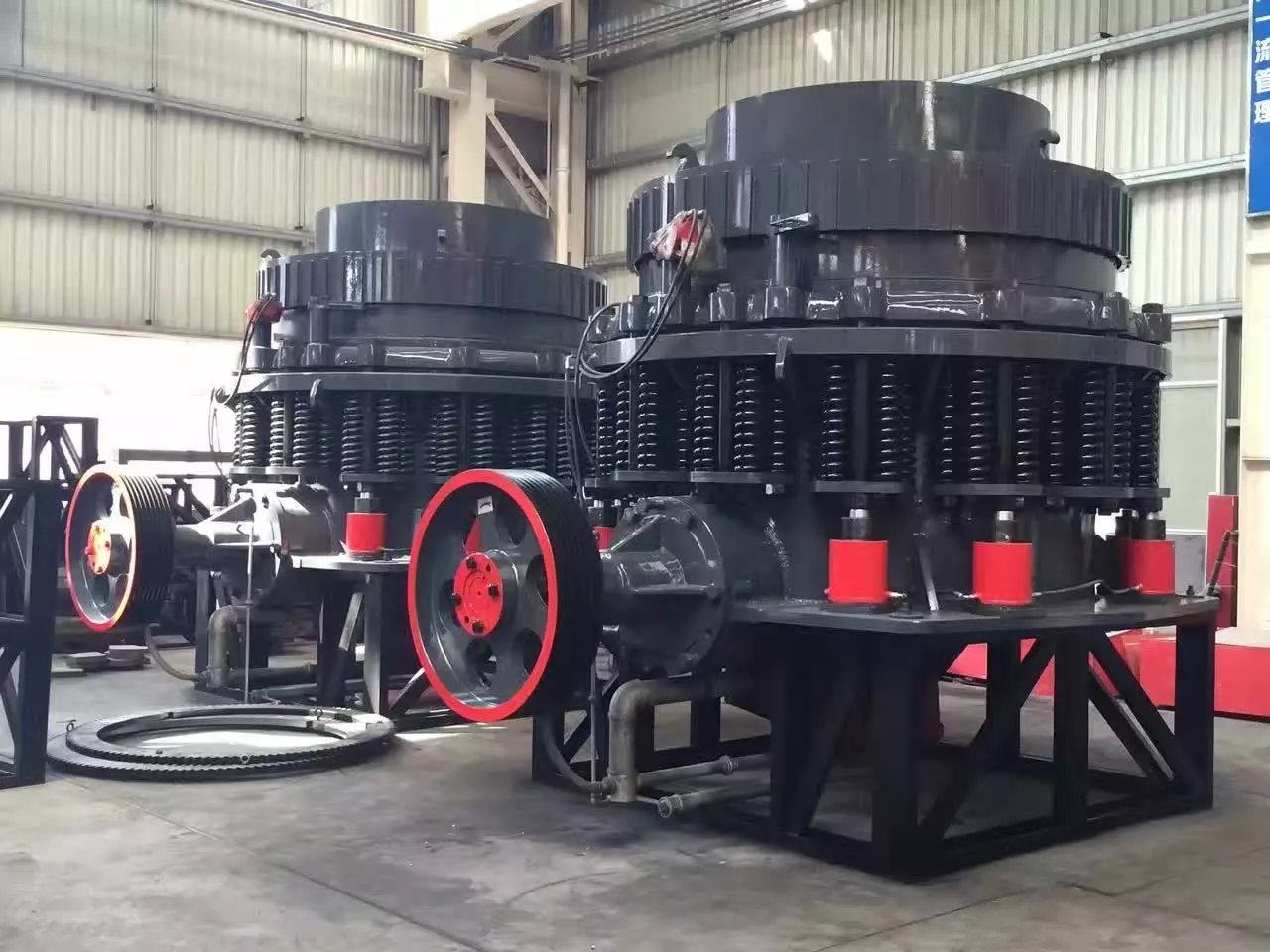

Brief Introduction

The spring cone crusher is suitable for crushing varies of mid-hard and above mid-hard ores and rocks. This crusher has the advantage of reliable construction, high productivity, easy adjustment and less cost in operation. The spring release system of crusher acts an overload protection system that allows dry oil, water, two kinds of sealed formation. It made plaster stone and engine oil separated, assured reliable performance. The type of crushing chamber depends upon the size of feed and fineness of the crushed product. The standard type is applied to medium crushing, the medium type is applied to medium or fine crushing and the short head is applied to fine crushing.

Applications

Spring cone crusher is one of the first cone crusher. It is an advanced high-power, large crushing ratio, high productivity hydraulic crusher. The machine is developed on the basis of the digestion and absorption of the various types of international advanced technology in 80 countries. The design of the machine is clearly different from the traditional cone crusher, and it put the main advantages of various types of cone crusher together. It is suitable for fine crushing and super fine crushing of hard rock, ore, slag, refractories, etc. Cone crusher can be widely used in metallurgy, construction industry, road building, chemical industry, and the phosphate industry. It is suitable for crushing hard and mid-hard ore and rock, such as iron ore, copper ore, limestone, quartz, granite, basalt, diabase, etc.
parameters

Type Max. input (mm) Adjusting range
of output (mm)		 Capacity (t/h) Motor power
(kW)		 Weight (t) Overall dimensions
(L×W×H)(mm)
PYB 900 115 15-50 50-90 55 10.2 3050×1640×2350
PYZ 60 5-20 20-65 10.2
PYD 40 3-13 15-50 10.3
PYB 1200 145 20-50 110-200 110 24.7 4152×2300×2980
PYZ 100 8-26 50-150 25
PYD 50 3-15 18-105 25.6
PYB 1750 215 25-60 280-480 160 50.3 4870×3800×4192
PYZ 185 10-30 115-320 50.3
PYD 85 5-15 75-230 50.4
PYB 2200 300 30-60 590-1000 260-280 80 7705×3430×4852
PYZ 230 10-30 200-580 80
PYD 100 5-15 120-340 81.4
